- 【Robust Power】The mini motor is equipped with high-strength magnetic tiles for strong power and greater torsion. A fully enclosed structure prevents dust ingress, reducing maintenance and increasing reliability.
- 【High- Design】The model engine kit features a high-accuracy rotor, crafted from premium materials for superior conductivity and wear . This ensures a long operational life, making it ideal for smart cars and robots.
- 【Versatile Application】Good for smart cars, robots, and printers, the motor kit is compact and easy to integrate into various projects, offering flexibility and adaptability in multiple tech-savvy fields.
- 【Efficient Performance】Enhanced by carbon brushes, the small dc motor provides excellent commutation, electrical, and thermal conductivity. Its good lubrication performance ensures longevity and efficient motor function.
- 【Timeproof 】Constructed with metal gears, the gear motor offers excellent impact , lowering noise and extending service life while maintaining durability in intense applications.
1. It is made of high-accuracy one-time forming rotor materials with high conductivity, wear and long life.
2. carbon brushes have good commutation performance, long service life, good electrical and thermal conductivity and good lubrication performance.
3. High-strength magnetic tile has long service life, strong power and greater torsion. It adopts fully enclosed structure to from entering the motor. It has simple structure, convenient maintenance and small volume, which can effectively reduc
4. The is made of metal gears, which has good impact and durability to reduce noise, thus delaying the service life of the .
5. Suitable for smart car, robots and printers

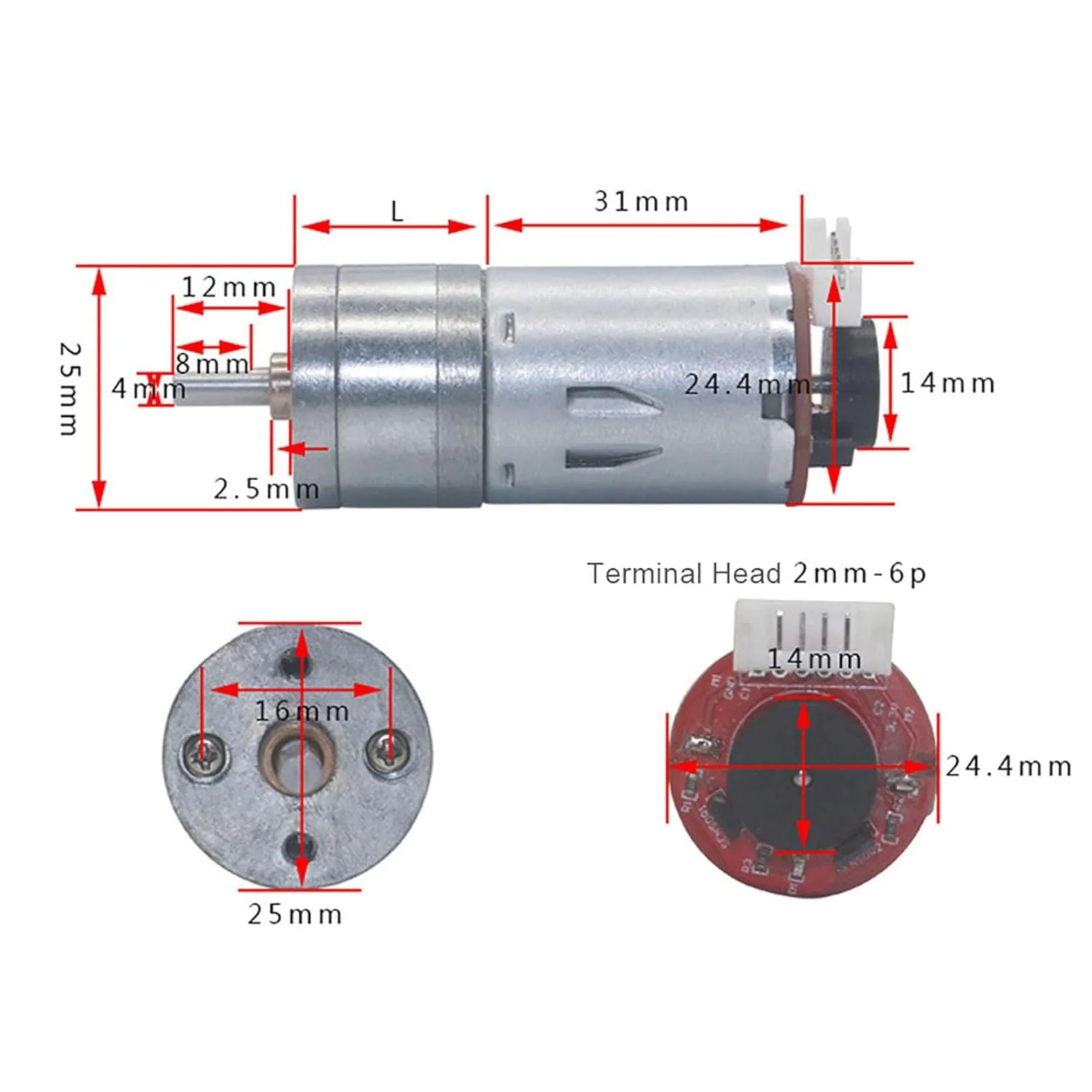

Specification:
Features:
1. It is made of high-accuracy one-time forming rotor materials with high conductivity, wear and long life.
2. carbon brushes have good commutation performance, long service life, good electrical and thermal conductivity and good lubrication performance.
3. High-strength magnetic tile has long service life, strong power and greater torsion. It adopts fully enclosed structure to from entering the motor. It has simple structure, convenient maintenance and small volume, which can effectively reduce weight, save space and be .
4. The is made of metal gears, which has good impact and durability to reduce noise, thus delaying the service life of the .
5. Suitable for smart car, robots and printers
Specification:
Condition: Brand new
ReductionRatio No-Load Rated Locked-Rotor L Size
Rated Voltage Speed Current Speed Current Torsion Torsion Current
V ±10%RPM A ±10%RPM A KG.CM KG.CM A MM
4.4 121360 0.07 1000 0.3 0.1 0.4 1.818
9.6 12620 0.07 500 0.3 0.2 0.9 1.817.5
21.3 12280 0.07 200 0.3 0.4 2 1.819
35.5 12170 0.07 130 0.3 0.69 3.3 1.821
46.8 12130 0.07 100 0.3 0.9 4.4 1.821
78 1277 0.07 60 0.3 1.5 5.5 1.823
103 1260 0.07 50 0.3 2 7.3 1.823
130 1246 0.07 40 0.3 2.5 9.2 1.825
171 1235 0.07 30 0.3 3.3 Do not block or instantaneous load reversal 25
226 1226 0.07 20 0.3 4.4 25
377 1216 0.07 15 0.3 7.3 27
500 1212 0.07 10 0.3 9.7 27 Optional : 1000RPM, 500RPM, 200RPM, 130RPM, 100RPM, 60RPM, 50RPM, 40RPM, 30RPM, 20RPM, 15RPM, 10RPM

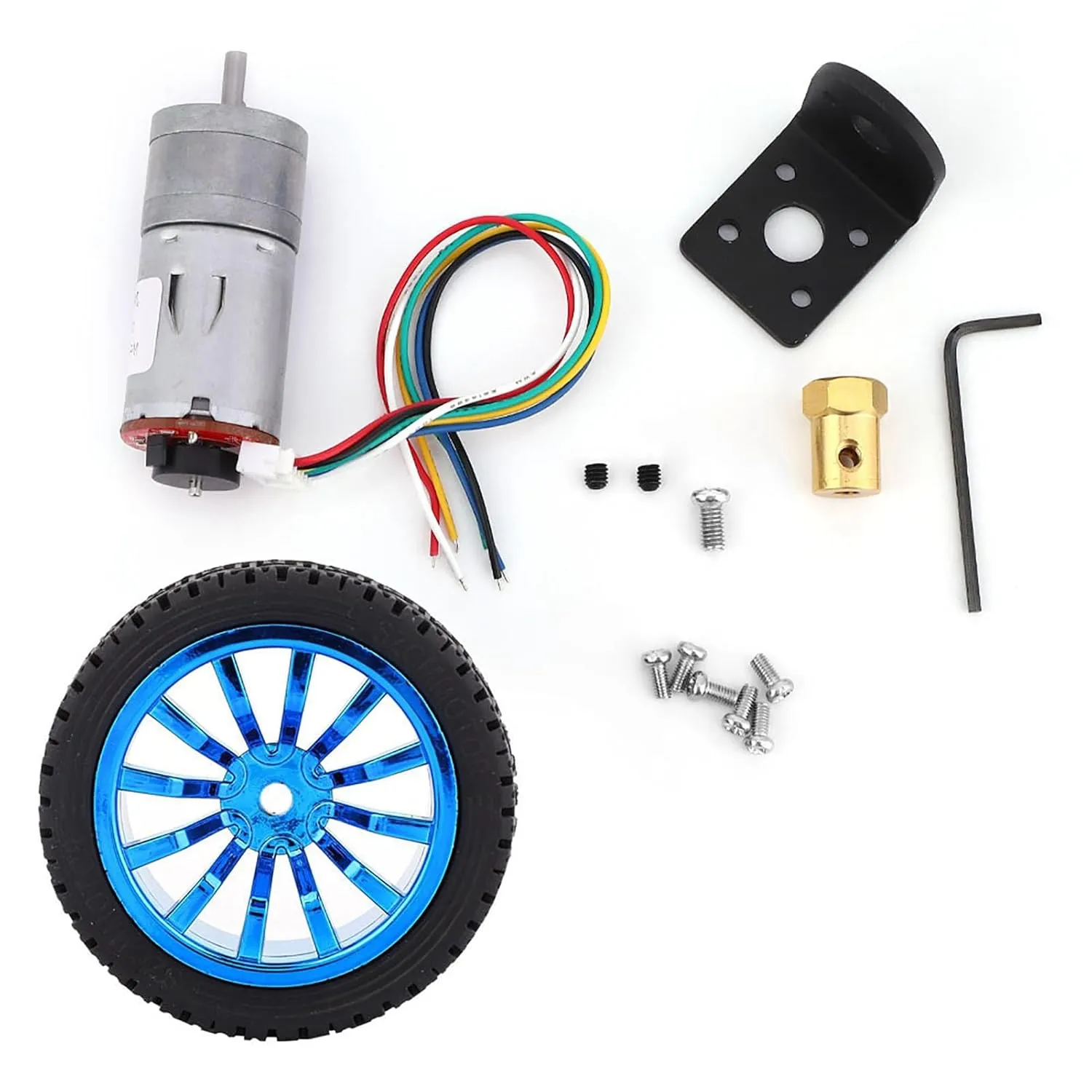

Package List:
1 x Motor
1 x Motor Base

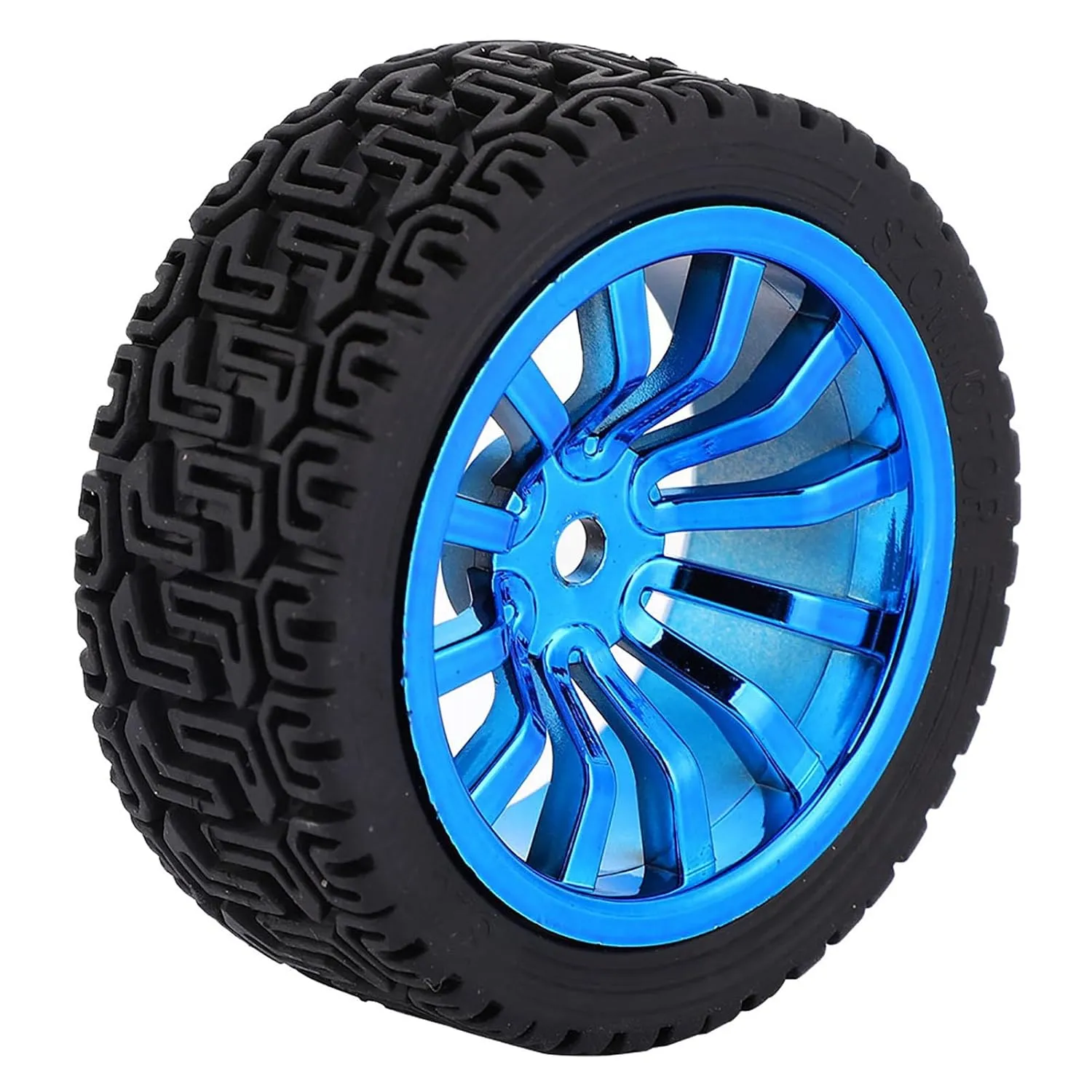

1 x Tire
1 x Coupling
1 x Hex Wrench
2 x Coupling Screw
6 x Small Screw
1 x Large Screw
- Package Dimensions : 5.51 x 3.94 x 3.54 inches; 6.6 ounces
- Date First Available : April 24, 2025
- Manufacturer : Yosoo
- Country of Origin : China
