- [Unique MAC Address] A unique MAC address ensures that a device with it will not have conflict with other devices' IPs in any network. This MAC address can be used as a device's fingerprint.
- [Light & Full-speed Gigabit]---It features high speed data transmission and perfectly suits loT applications that require both high quality data transmission and small form factor
- [GPIO Programming Libraries, Ready to Go]---GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO; Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps.
- [OS & Software]---Support FriendlyWrt 21.02.1 (64-bit) and FriendlyCore Focal Lite (Base on Ubuntu 20.04)
- [WIKI] ""; Any after-sales problems, please contact us by our tech-support click "WayPonDEV" store or leave the message in our forum by “forum.youyeetoo.com/” and ask the qusetion.

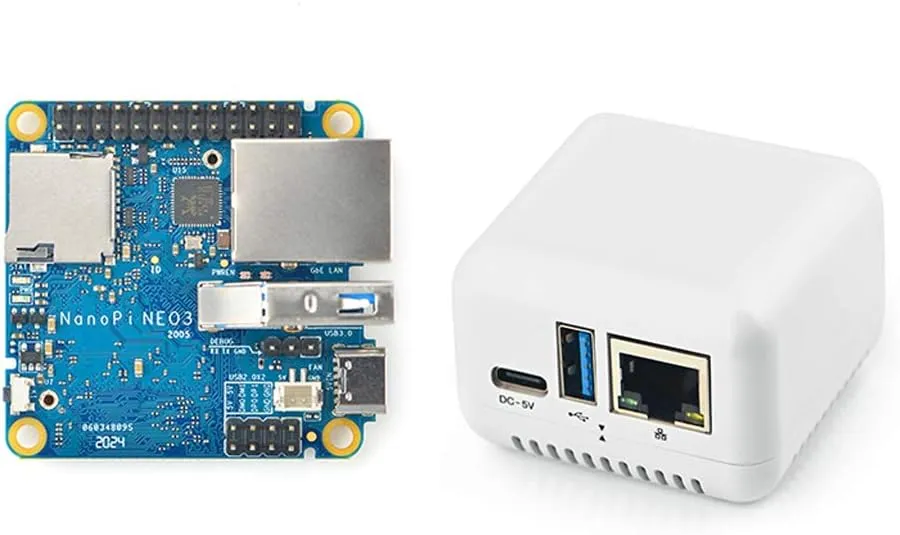

The NanoPi NEO3-LTS is a newly released super tiny ARM board by FriendlyElec. lt uses Rockchip's 64-bit quad-core SoCRK3328(ARM Cortex-A53).These features make it especially suitable for applications that require high data throughput , speedy data transmission andhigh performance. Hobbyists and makers will just love it.
-Specification-
CPU Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53 64-bit
Frequency: 4 x Cortex-A53 Up to 1.3GHz
Memory RAM: 1GB 32-bit DDR4
Storage:MicroSD Slot: MicroSD x1 for external storage up to 128GB
Connectivity Ethernet: Gbps Ethernet x1 with unique MAC
USB: USB 3.0 Host x1: USB Type A; USB 2.0 Host x2: 2.54mm 4x2pin-header; Type-C x1: Power Input Only
Pin-header: GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO; Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps
LED: PWR LED(Red) x1; STAT LED(Green) x1
Button: User button x1
Working Temperature -20℃ to 70℃
Power: 5V/1A, via Type-C or GPIO
-OS Support-
FriendlyWrt 21.02.1 (64-bit)
FriendlyCore Focal Lite (Base on Ubuntu 20.04)
-Dimension-
PCB: 6 Layer
Weight: 22g
Size: 48x48 mm
-Package Content-
1x Nanopi NEO3 1GB Mini Router- (with unique MAC Chip)
-Technical Support-
Wiki:youyeetoo.com/blog/nanopi-neo3ys00114-ys00117-58.
Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122.
Please leave the message in our forum by " forum.youyeetoo.com/ ".
