- 【Convenient Use:】The tank car chassis can is compatible with most development board controller, like Arduino, Raspberry pie, Microbit. So, if code programming, this robot chassis can be controlled these controllers, e.g., Arduino, Raspberry, STM32, and you can DIY the remote control robot car chassis.
- 【Good Help for Your Project】When you want to do some robot model function realization. This smart car chassis is very suitable for you. This 4wd robotic car chassis is easy to assemble. After programming code, one can realize the function. This is very useful for practical engineering applications, like AI RoS, SLAM algorithm.
- 【Updating Rich Documents】Visit our blog gitnova, you can find many installation document or referred source code, which will accelerate one’s learning rate, or the develop speed. Note that, it is the referred code.Also relative online documents are also attached in it.
- 【Provide the Referred Controlling Example】Our aim is that provide the robot car chassis frame, and some relative doecuments for STEAM maker education. One get it, can learning the code program, competition. So, we provide the illustrative controlling example with different wireless control modes: Bluetooth, WiFi, and ps2.
Features:
- The chassis panel is made of 2mm aluminum alloy, which is strong;
- The robot brings four 60mm mecanum omnidirectional wheels, the robot can move forward and backward, turn left, turn right, etc .;
- The robot is equipped with 4 high-torque TT motors, which provides sufficient horsepower for the chassis and the chassis travels fast;
- It is a cost-effective omnidirectional wheel chassis, suitable for learning, competition DIY, etc.

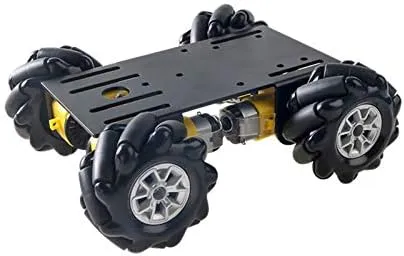

Name: MC100 4WD metal smart car chassis
- Panel material: 2mm aluminum alloy
- Surface treatment: sandblasting oxidation
- Panel color: silver / black / blue
- Size: 170 * 140 * 60mm (length * width * height)Mecanum wheels
- Wheels: 60mm mecanum omnidirectional wheel
- Weight: about 380g
60mm mecanum omnidirectional wheel:
- Color: Black
- material: plastic
- Inner wheel diameter: 35.5mm
- Outer wheel diameter: 60mm
- Thickness: 27mm
- Number of sub-rounds: 9
- Load-bearing: 10k'g (4 functions)
TT Motor Parameters :
- Voltage 6V (recommended at 3-6V best)
- Motor specifications (choose one): Voltage : 6V
- no-load current : ≤250mA
- no-load speed :240±10% rpm
- Voltage : 3V
- no-load current : ≤170mA
- no-load speed :110±10% rpm
Shipping list:
- 1 × metal panel
- 4 × 60mm omni wheel
- 4 × TT motor
- 4 × encoder
Free: screwNote:
- In order to facilitate transportation, the product is not assembled.
- The reduction ratio of the TT motor is 1:48.
- More documents can be downloaded at gitnova.
