- Support redundancy function
- Higher precision deviation of PWM
- Lower latency on the PWM output
- Strong anti-interference performance
- Smart Port enabled and support telemetry data transmission

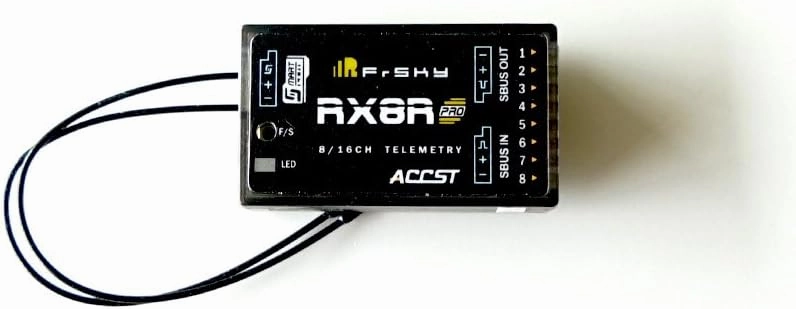

An upgraded version based on the RX8R receiver, it has all the same features including redundancy. The Pro version has higher precision and lower latency. Its deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high-speed mode. A feature that deserves mention is the decreased effect of interference caused by the ignition process.
Specifications
- Dimension: 25mm*26.6mm*14.2mm (L*W*H)
- Weight: 14.8g
- Numbers of Channels: 16CH(1～8CH PWM or 9~16CH PWM from conventional channel outputs, 1~16CH from SBUS)
- With RSSI Output on Board: Analog DC 0~3.3V
- Operating Voltage Range: 3.5V~10V
- Operating Current: 100mA@5V
- Operating Range: full range(>1.5km)
- Firmware Upgradeable
- Servo Frame Rate: 9ms (HS— High-Speed Mode)/18ms (FS—Normal Speed Mode)
- Compatibility: FrSky transmitters/transmitter modules in D8/D16 mode
