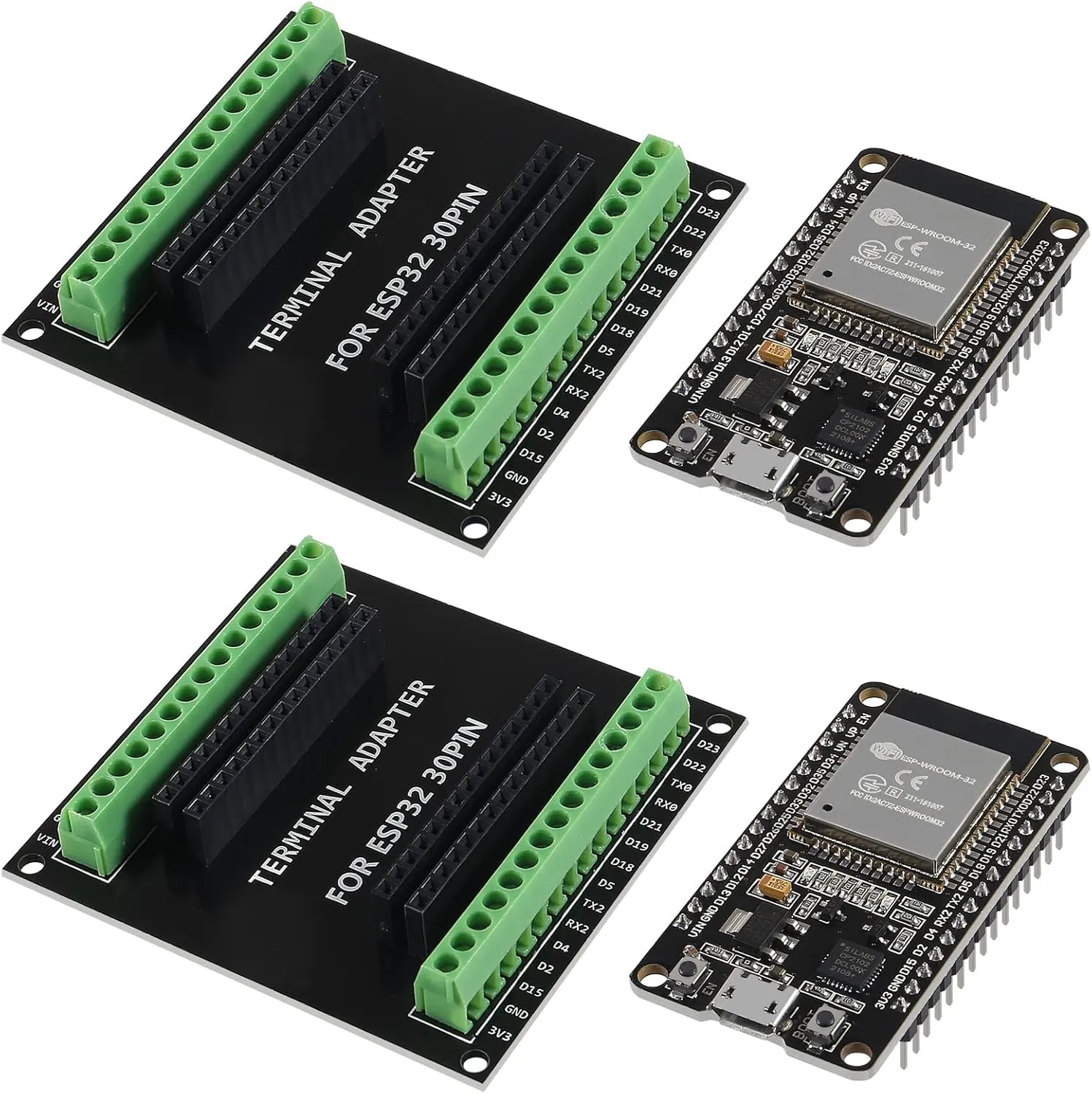

- You will get 2 PCS ESP32S ESP32 ESP-WROOM-32 Development Board 2.4GHz Dual-Core WiFi Bluetooth 2 Function Microcontroller with 2PCS ESP32 Breakout Board Shield GPIO 1 into 2
- ESP32 CP2102 development board support lua program, easy to develop, support LWIP protocol, Freertos, three modes : AP, STA and AP STA.
- Support USB power supply, external 3.3V power supply, and VIN power supply three kinds of power supply Mode development board
- ESP32 CP2102 30pins Compatible with Arduino IDE and Ultra-Low power consumption

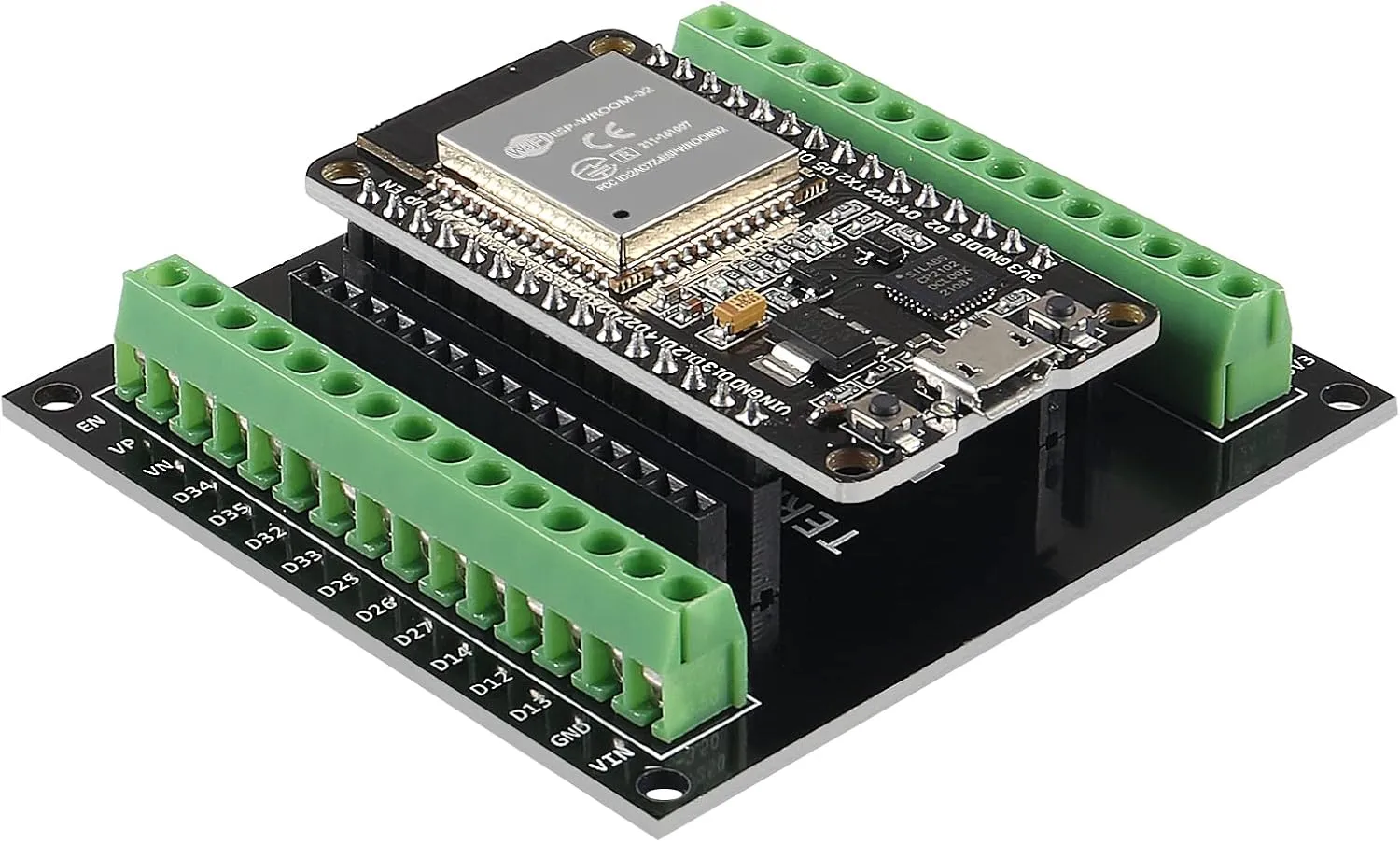

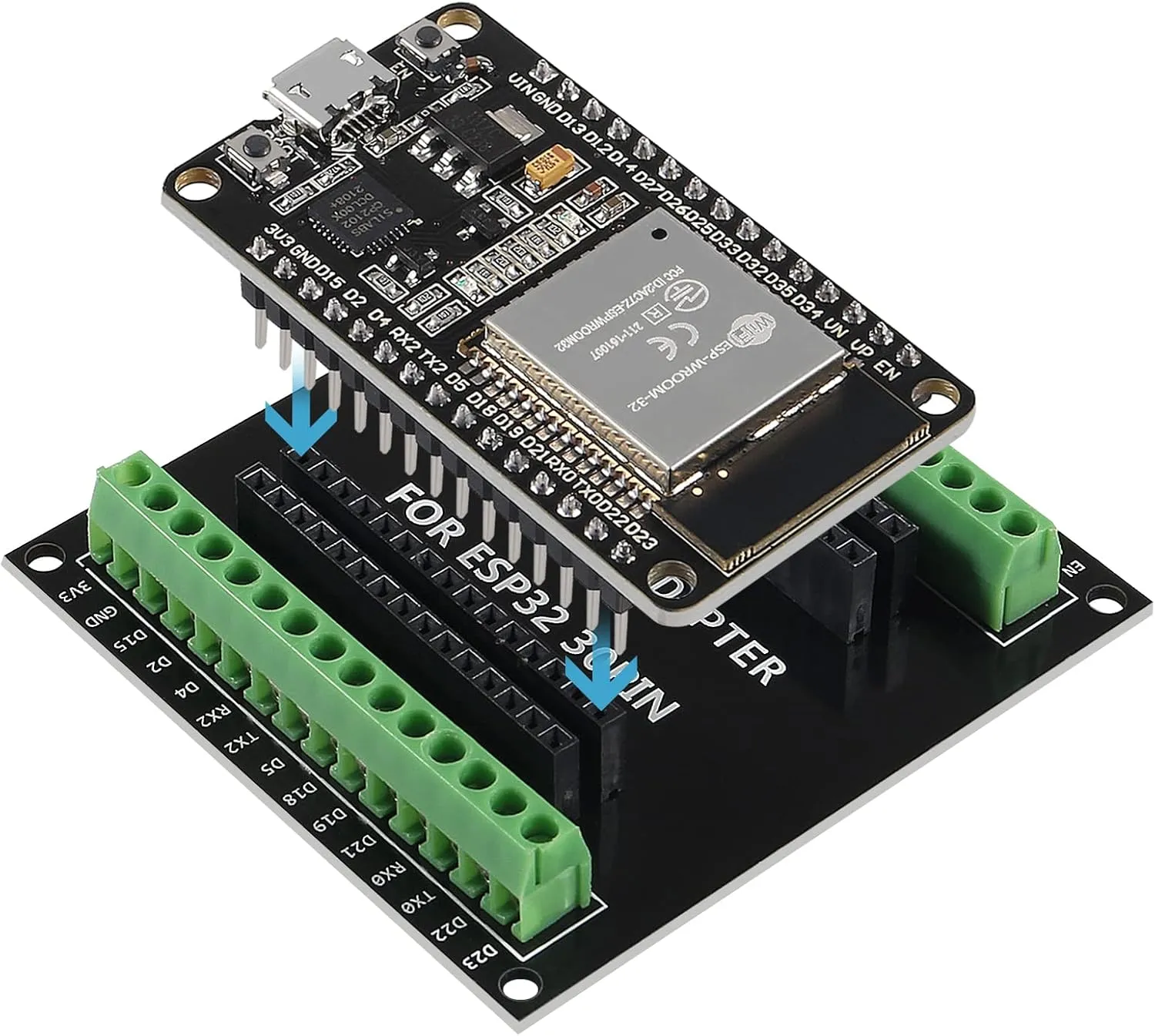

- AITRIP GPIO 1 INTO 2 breakout board can expand one GPIO pin of esp32 development board to two, which is convenient for users to reuse all pins in smart home projects.
ESP32 30pin:

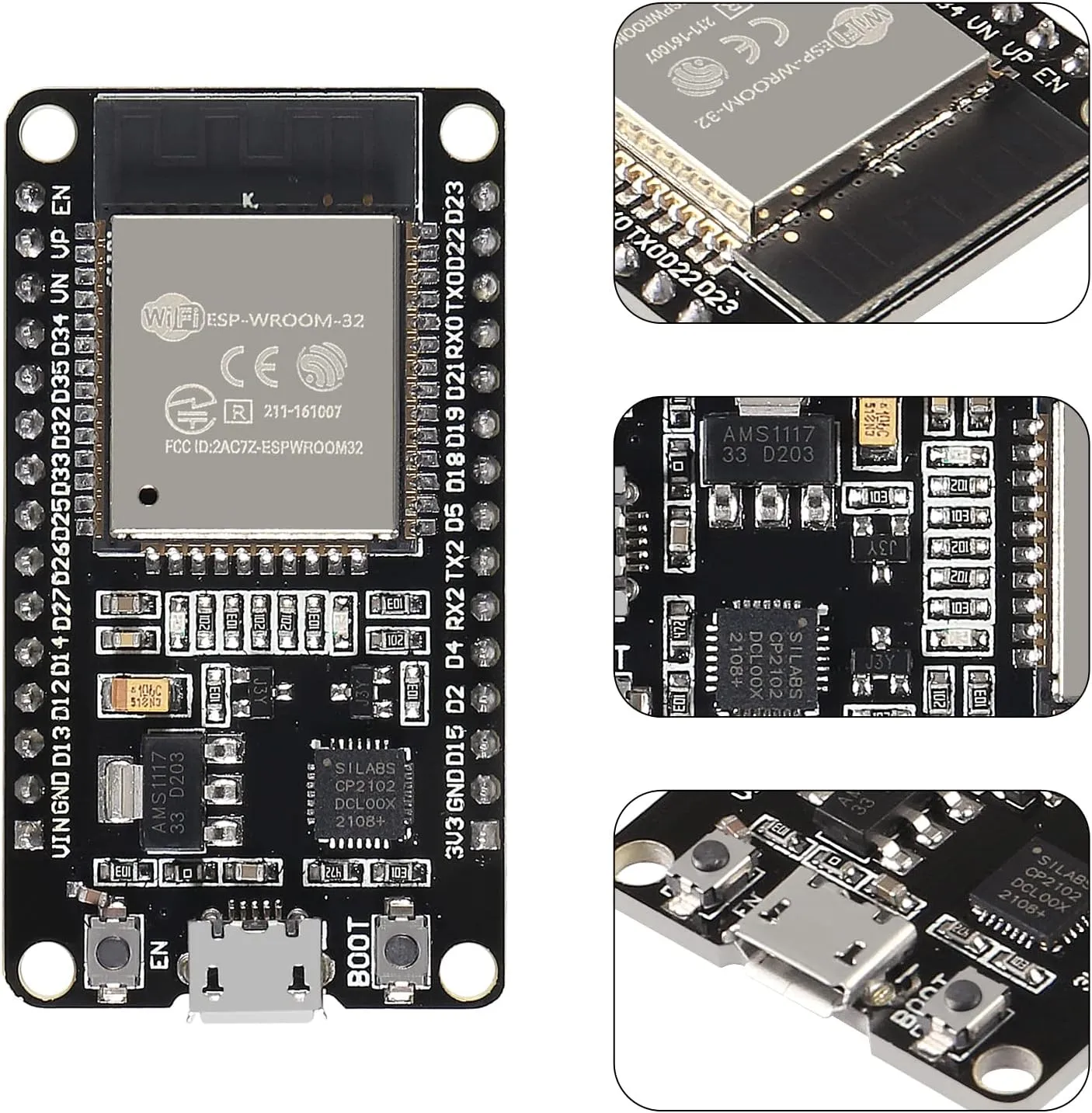

the 30pin ESP32 ESP32S development board uses 2.4GHz dual-mode Wi-Fi, chip ESP-WROOM-32, and 40nm low power consumption technology
This ESP32 development board supports STA / AP / STA AP working modes, bringing you a lot of convenience.
ESP32 development board integrates antenna switches, RF balun, power amplifiers, low noise amplifiers, filters and power management modules
ESP32 Breakout Board Shield GPIO 1 into 2 Specifications:
PCB material: high quality FR-4 material
PCB layers: 2 layers
PCB thickness: 1.6mm
Pads: tin plated
Size: 6.3 * 6.6 * 1cm (L*W*H)
Package includes:
2 x 30pins ESP32 development boards
2 x ESP32 Breakout Board Shield GPIO 1 into 2 for 30PIN ESP32 Development Board
